1/2" NPT Combination Pilot, Unloader, Check Valve plus Throttle Control Cable for 8HP - 13 HP Gas air Compressors and Below (140-175 PSI, 60" Throttle Control Cable & Unloader Valve)
US$160.18
Arrives as soon as ✓ Free shipping — over $200Description
Product Details Size: 140-175 PSI Number of Items: 1 Unit Count: 1 Count Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE Material Type: Brass, Stainless Steel Exterior Finish: Brass, St...
Delivery & Returns
Ships to the United States
Free shipping on orders over $200 · $6.90 below that
30-day returns — label emailed, fees may apply
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
SORQINOTER
3 Pack Heavy-Duty Shipping Container Shelves with 57"(H) X 18"(W)
US$233.98
Xnvua
48 Volt 18 AMP Golf Cart Battery Charger for Club Car 3-Pin Round Plug for 48V Lead Acid Battery
US$170.98
GIMFOOM
Car Jump Starter, 3000A Jump Starter Battery Pack for Up to 9.0L Gas or 7.5L Diesel Engine, 12V Car Battery Jump Starter, Jump Box with LED Light, Storage Case, and Dual USB Output.
US$107.98
MHMYDZ
20 Pack L5 x H 3" Black Heavy Duty Shelf Brackets with Screws Metal Shelf Brackets Shelf Support Angle Brackets for Shelves L Brackets Heavy Duty Floating Shelf
US$61.11
MHMYDZ
24 Pack L5 x H 3" Black Heavy Duty Shelf Brackets with Screws Metal Shelf Brackets Shelf Support Angle Brackets for Shelves L Brackets Heavy Duty Floating Shelf
US$66.51
Zyklonix
Sausage Caulk Gun,20 oz Sausage Foil Pack/10 oz Cartridge Adhesive Dual-Purpose,18:1 Thrust,15” Sealant Manual Caulking Gun Kit With Cone Nozzles and Bent Tip (Sliver-2 Pack)
US$88.18
JDK Diamond Tools
JDK 4 Inch Diamond Resin Filled Cup Wheel Grinding Wheel with Thread 5/8“-11 for Granite Stone and Tiles (Coarse)
US$91.78
Tsmhisd
Shoulder Eye Bolts M10 Heavy Duty Shoulder Lag Eyebolts, Stainless Steel Expansion Screws Wall Concrete Anchors Fastener with Nut for Wall Ceiling Concrete Masonry, 10PCS
US$66.40
KaiMinDogzGarageDoo...
Pair of 1.75" Garage Door Torsion Springs Set
US$242.78
LIFMOCERHOME
GS300 Jump Starter
US$107.96
SupConn
2-3/8"Steel to Wood Fence Brackets,24Pcs Metal Fence Post Brackets
US$142.18
SURGE BUILDING PROD...
1/4" x 2" Hammer Drive Nail in Concrete Anchor (Box of 100)
US$67.50
US$160.18Free shipping
More options
Link copied
Product Details
- Size: 140-175 PSI
- Number of Items: 1
- Unit Count: 1 Count
- Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE
- Material Type: Brass, Stainless Steel
- Exterior Finish: Brass, Stainless Steel
- Inlet Connection Type: National Pipe Tapered
- Outlet Connection Type: NPT THREADING
- Maximum Pressure: 500 psi
- Thread Size: 1/2"
- Thread Type: NPT
- Valve Type: Check Valve
- Inlet Connection Size: 1/2 NPT inches
- Outlet Connection Size: 1/2 NPT inches
About this item

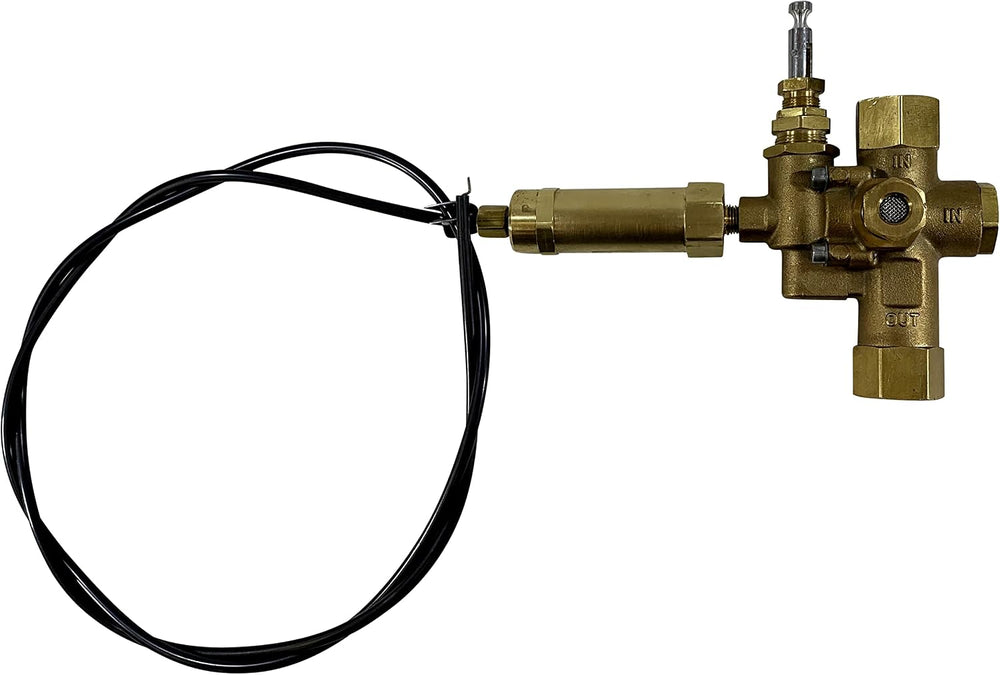

- 1/2" Female NPT Inlet / Outlet, Combination pilot valve, check valve, unloader valve all-in-one for 8HP - 13HP Gas Powered Air Compressor Engines and Below.
- Throttle Control: For Throttle Control Cable Variation option, please select your Throttle Control Cable OAL (Overall length) from the Variation options above.
- Unloader Valve PSI Options: Please select your ON/OFF PSI Rating on the Unloader Valve from the variations above. The Lower Pressure ON position, the unloader will relay to the engine through the throttle control that its time to cycle ON. The Higher Pressure OFF position, the unloader valve will relay to the engine through the throttle control that its time to Idle OFF. If you already have a Throttle Control Mechanism, simply select the " Valve ONLY " Variation option.

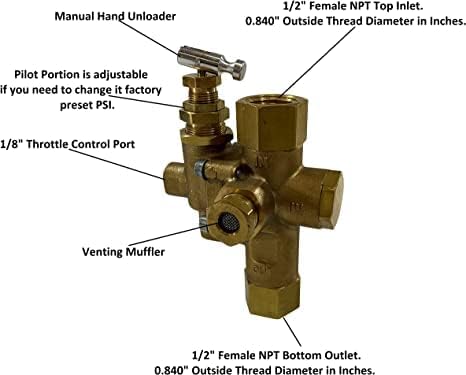

- Please see our break down sheet shown in our pics for details regarding each connection port.

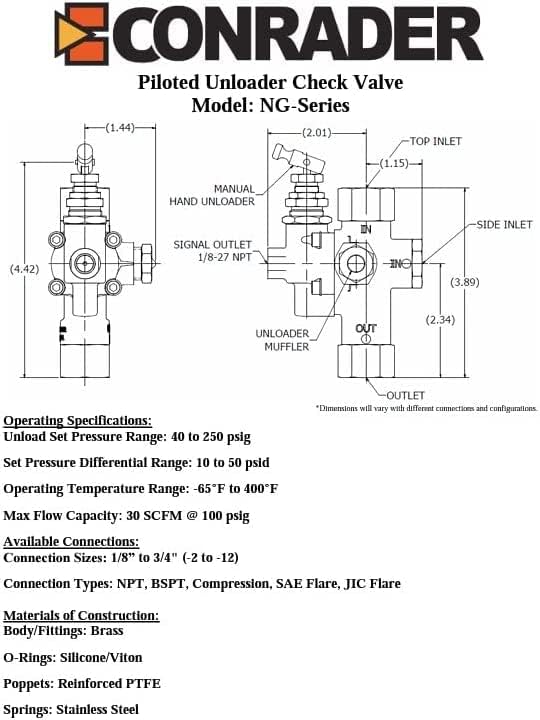

- Unloader Valve: 30 CFM Flow Rate, Pressure differential 10 to 50 psi, operating temp -65f to 400f max. All brass construction and built for the rigors of outdoor gas compressors. Manual hand unloader toggle and brass venting muffler included.

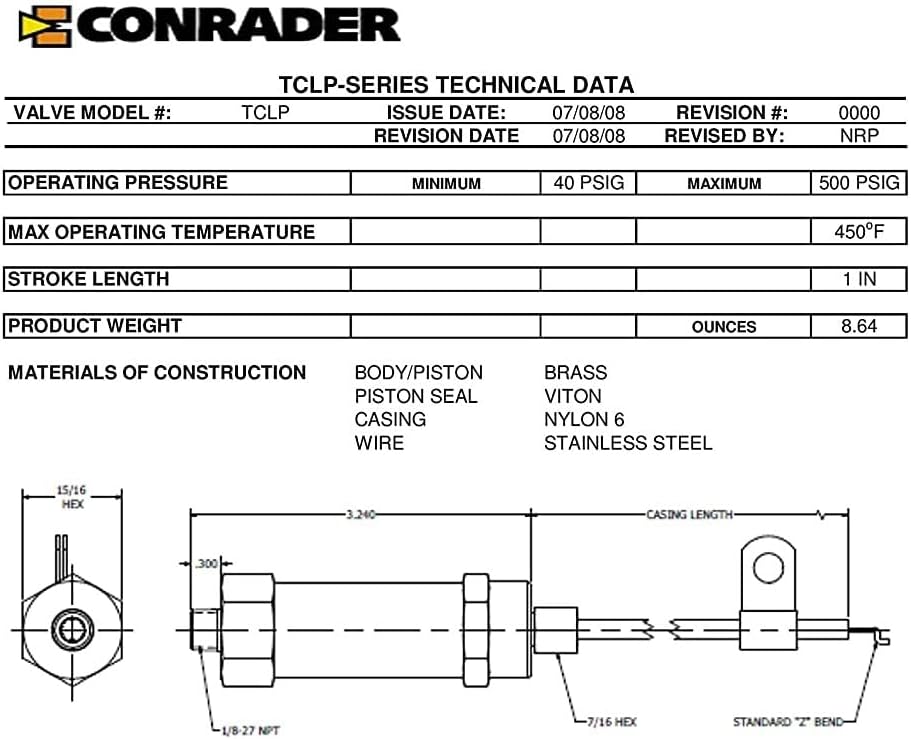

- Throttle Control Cable: The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle. Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable. Min. Pressure 80 PSI, Max Operating Pressure 500 PSI, Retracted Spring Force: 16.89 lbf, Stroke Length: 1.00 inch.
