23474570 Pressure Switch Two Stage Compressor 5-7.5 HP 135-175 PSI
US$61.85
Arrives as soon as ✓ Free shipping — over $200Description
Product Details Color: Black Item Weight: 14 ounces Voltage: 220 volts Power Source: ac Included Components: Air Compressor Pressure Switch Number of Items: 1 Unit Count: 1 Count Model Nam...
Delivery & Returns
Ships to the United States
Free shipping on orders over $200 · $6.90 below that
30-day returns — label emailed, fees may apply
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
Neevolve
8 in Hidden Floating Shelf Brackets 8 Pack, 1/4" Thick Heavy Duty
US$82.40
Weiler
Weiler 68317 TIGER AO TYPE 17 Flat Tip Portable Grinding Cone, A24-R, 2" X 3" X 5/8-11, (Pack of 12)
US$243.92
MAKERS BOLT
5/8 in. x 10 in. Black Carriage Bolt Kit Includes 12 Bolts, 12 Washers, and 12 Nuts, Ceramic Black Ruspert Coated for Exterior Use - 2X Rust Resistance of Galvanized by Makers Bolt
US$126.83
FMhotu
3/8" x 12" Carriage Bolt Kit 50 Pack, Grade 307A, Hot Dip Galvanized Carriage Bolt Set, Rust Resistance, Includes Hex Nuts & Flat Washers
US$136.78
FMhotu
3/8" x 4-1/2" Carriage Bolt Kit 50 Pack, Grade 307A, Hot Dip Galvanized Carriage Bolt Set, Rust Resistance, Includes Hex Nuts & Flat Washers
US$85.48
Victeut
24 Inch SDS Max 3pc Set - 1 Inch Flat Chisel, Point Chisel and 3 Inch Scaling Chisels - Masonry Concrete Drill Bit Set 40Cr Steel SDS Max Bits Rotary Hammer Drill for Brick Stone Concrete
US$118.78
Increo
3"x3"x1.5" Steel Angle Bracket, 90 Degree L Corner Brace
US$57.58
BEHAMBOW
Tire Inflator Portable Air Compressor, 5X Faster Portable Air Compressor
US$52.16
ChillWaves
ChillWaves 1/4-Inch Brass Male Industrial Coupler,1/4" NPT Male 6-Ball Quick Connect Air Coupler Air Hose Fittings(12-PACK)
US$66.58
SHEUTSAN
SHEUTSAN 100 PCS 40 x 40 x 16mm L Bracket Corner Brace, Joint Right Angle 90 Degree Stainless Steel Shelf Corner Braces, Angle Brackets for Wood, Furniture, Closet (Pack of 2)
US$68.36
Ozco
OZCO Ironwood 5 in T-Tie Plate Connector | Decorative Hardware with Pre-Tapped Holes for Timber Bolts & Screws | Powder-Coated Galvanized Steel for Deck, Pergola & Structural Wood Connections
US$84.73
DIYHD
DIYHD 3-Tier Ceiling Mount Shelf Brackets,Industrial Rustic Black Storage Hanging Pipe Shelf,Max Load 100lbs,No Wooden Plank
US$120.60
US$61.85Free shipping
More options
Link copied
Product Details
- Color: Black
- Item Weight: 14 ounces
- Voltage: 220 volts
- Power Source: ac
- Included Components: Air Compressor Pressure Switch
- Number of Items: 1
- Unit Count: 1 Count
- Model Name: Air Compressor Pressure Switch
- Model Number: 23474570
- Recommended Uses For Product: Powering Pneumatic Tools, Operating Spray Painting Equipment, Running Air-Powered Machinery
- Maximum Power: 7.5 hp
- Maximum Horsepower: 7.5 hp
- Maximum Pressure: 175 psi

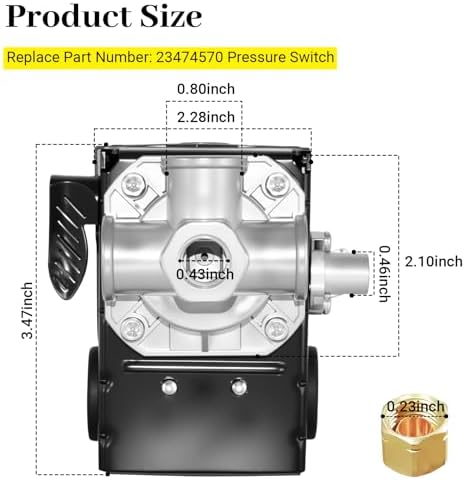

- Item Dimensions L x W x H: 4.32"L x 3.85"W x 3.82"H
- Material Type: Alloy Steel, Aluminum
- Item Highlight: for Ingersoll Rand Air Compressor 2475 2545 2340 7100 with Unloader and 4 Port On/Off Lever
- Number of Packs: 1
- Manufacturer Part Number: AWD0001
About this item
- Part Number: 23474570 Pressure Switch Replacement - for Ingersoll Rand Reciprocating Air Compressors Package Contains: 1 Pressure Switch

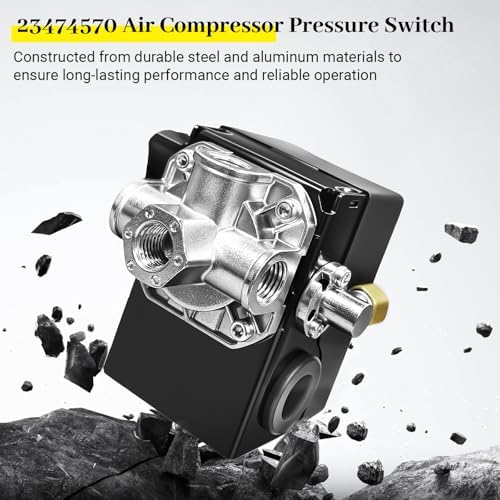

- Durable materials: The air compressor pressure switch is made of high quality steel and aluminum for durability and long service life.

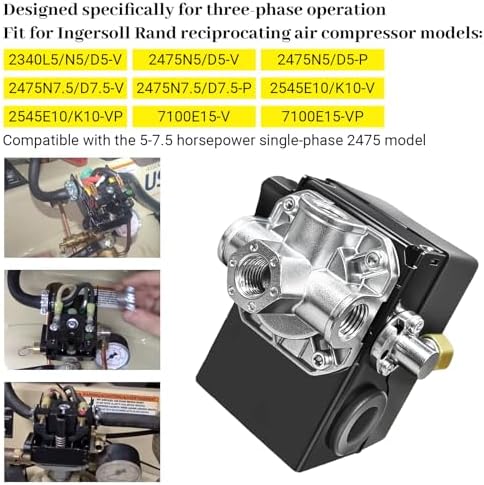

- Applicable Models: The air compressor pressure switch fits most three-phase Ingersoll Rand reciprocating air compressor models as follows: 2340L5/N5/D5-V, 2475N5/D5-V, 2475N5/D5-P, 2475N7.5/D7.5-V, 2475N7.5/D7.5-P, 2545E10/K10-V, 2545E10/K10-VP, 7100E15-V, and 7100E15-VP are compatible with 5-7.5 HP single-phase 2475 models.
- When to Replace: If the air compressor pressure switch fails to activate at a lower set point or fails to close at a higher pressure set point, causing the safety valve on the tank to pop off, the pressure switch usually needs to be replaced.

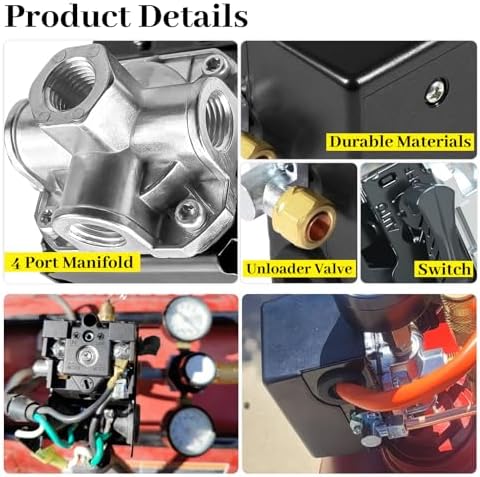

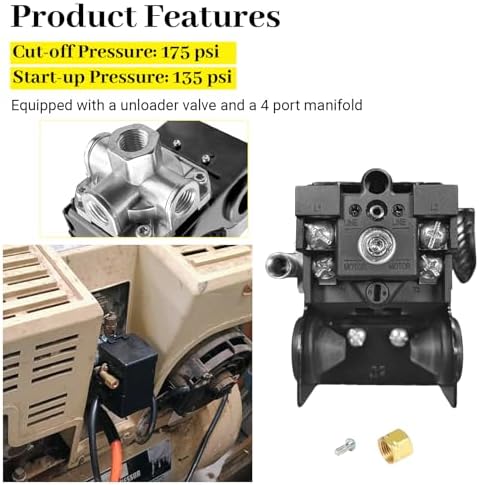

- Product Features: Air compressor pressure switch has a cutoff pressure of 175 psi and a preset cut-in pressure of 135 psi. equipped with an unloading valve and 4-way manifold for easy installation and maintenance.

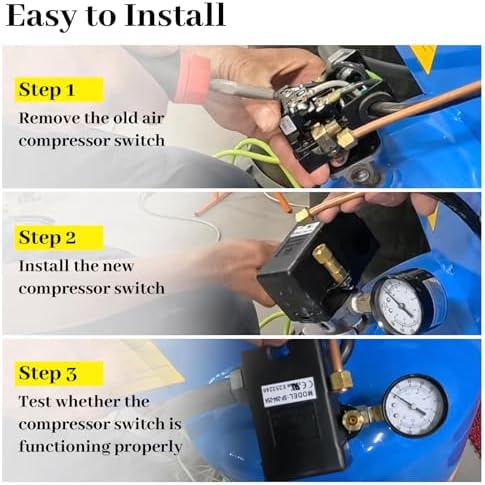

- Easy to install: when the compressor pressure switch is damaged, just put the new replacement parts into the designated location, the operation is simple, convenient and fast.
