6" LED Trailer Light Kit, Submersible 12V Boat Trailer Lights

Product Details

• Color: Red
• Item Dimensions: 6 x 3.54 x 2 inches
• Voltage: 12 volts_of_direct_current
• Wattage: 5 watts
• Specific Uses For Product: Rear Lights, Combine brake, tail, turn signals, side marker, side reflector, rear reflector, and license plate light into one.

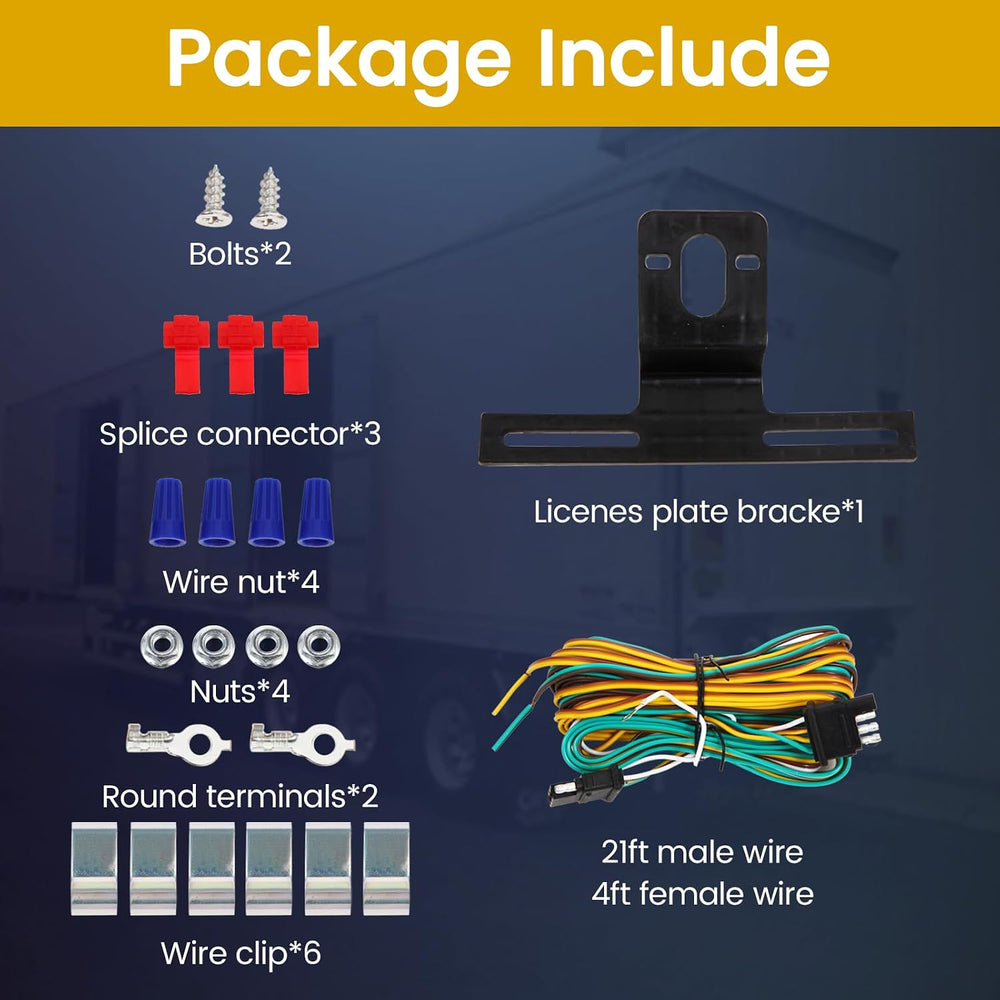

• Included Components: 1 bag mounting hardware, 1x 25ft 4 pin trailer wiring harness, 1x Licenes plate bracke, 2x Rectangular LED trailer lights
• Number of Items: 1
• Model Number: HDD-017
• Light Source: LED
• Compatible with Vehicle Type: boat trailers, RVs, campers, tractors, canoes, trucks, buses, vans, snowmobiles
• Additional Features: Combine brake, tail, turn signals, side marker, side reflector, rear reflector, and license plate light into one., Stop lights, brake lights, turn signal lights, parking lights, license plate lights,…
• Auto Part Position: Rear
• Automotive Fit Type: Universal Fit
• Lens Material: Polycarbonate
• Lens Color: Red
• Model Year: 2000
• Manufacturer Part Number: HDD-017
• Item Highlight: Rectangle Stop Turn Tail License Plate Trailer Light Kit w/25ft 4Pin Wiring Harness for Boat, Utility and RV Trailer Lighting
• Number of Packs: 1
• Set Name: 6 Inch Trailer Lights LED Kit
• Item Type Name: LED Trailer Light Kit
• Manufacturer Warranty Description: 2 year manufacturer

About this item

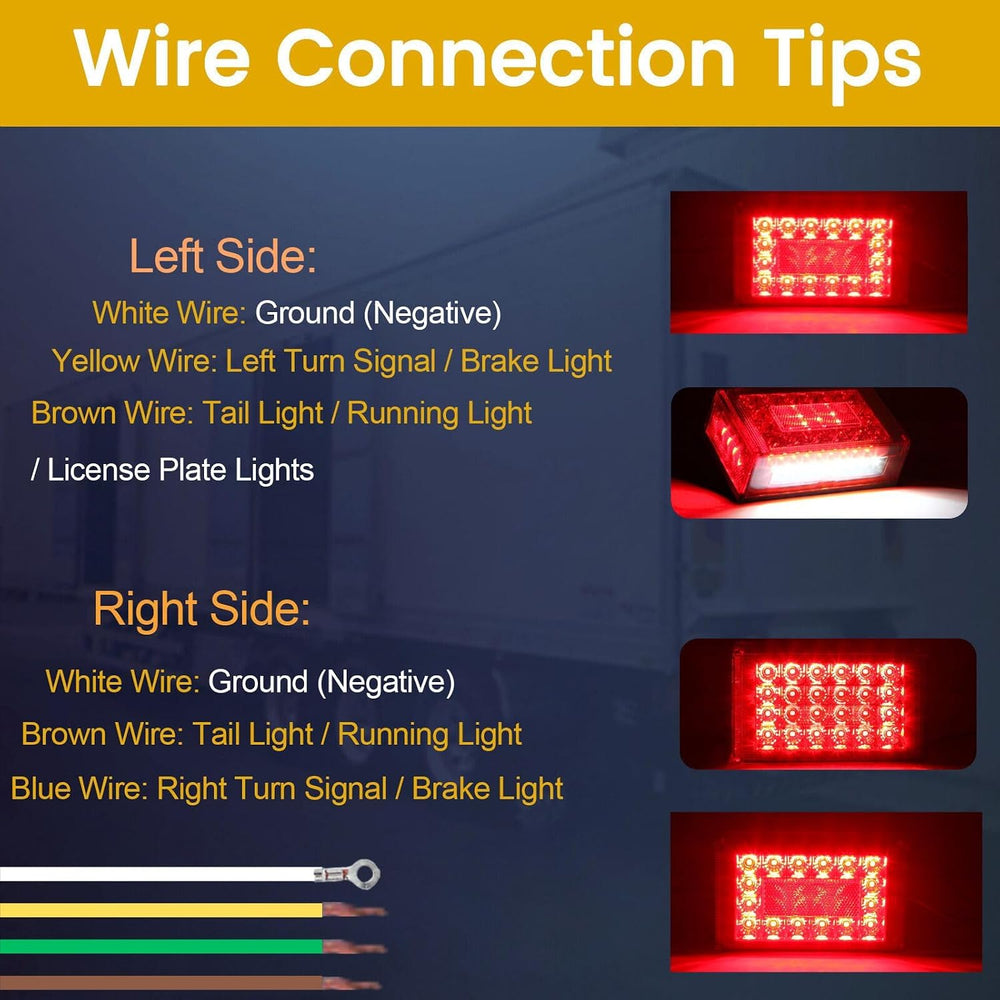

• Boat Trailer Light Kit: White wire: ground (negative). White wire + brown wire: low brightness, used for the tail light, running light, and license plate light. White wire + yellow wire: high brightness, used for the left turn signal and brake light. White wire + blue wire: high brightness, used for the right turn signal and brake light. We recommend familiarizing yourself with the wiring method before purchase to help facilitate installation

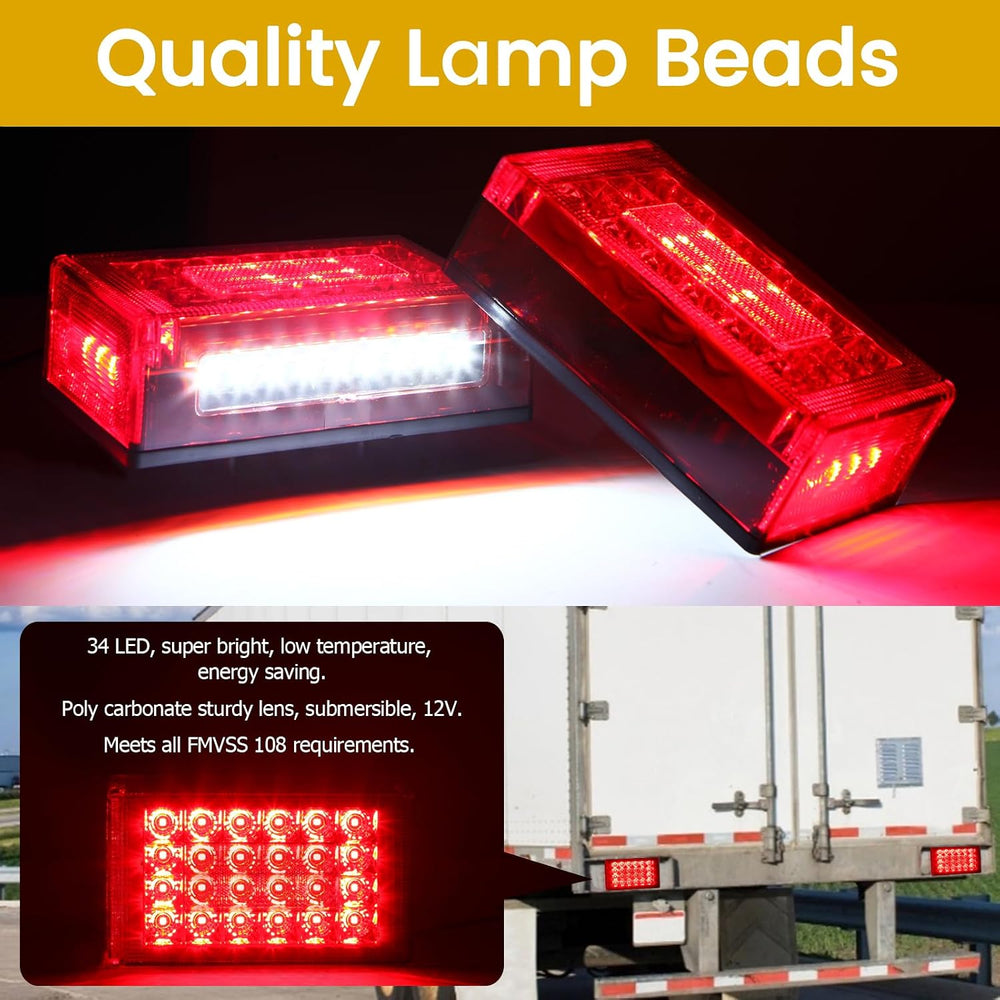

• 6" Rectangle Trailer Light: The trailer lights use LED diodes and are designed with low power consumption compared with incandescent lights. The driver-side light has 34 LEDs, including 21 LEDs on the front, 4 LEDs for the side marker light, and 9 LEDs for the license plate light. The passenger-side light has 25 LEDs, including 21 LEDs on the front and 4 LEDs for the side marker light

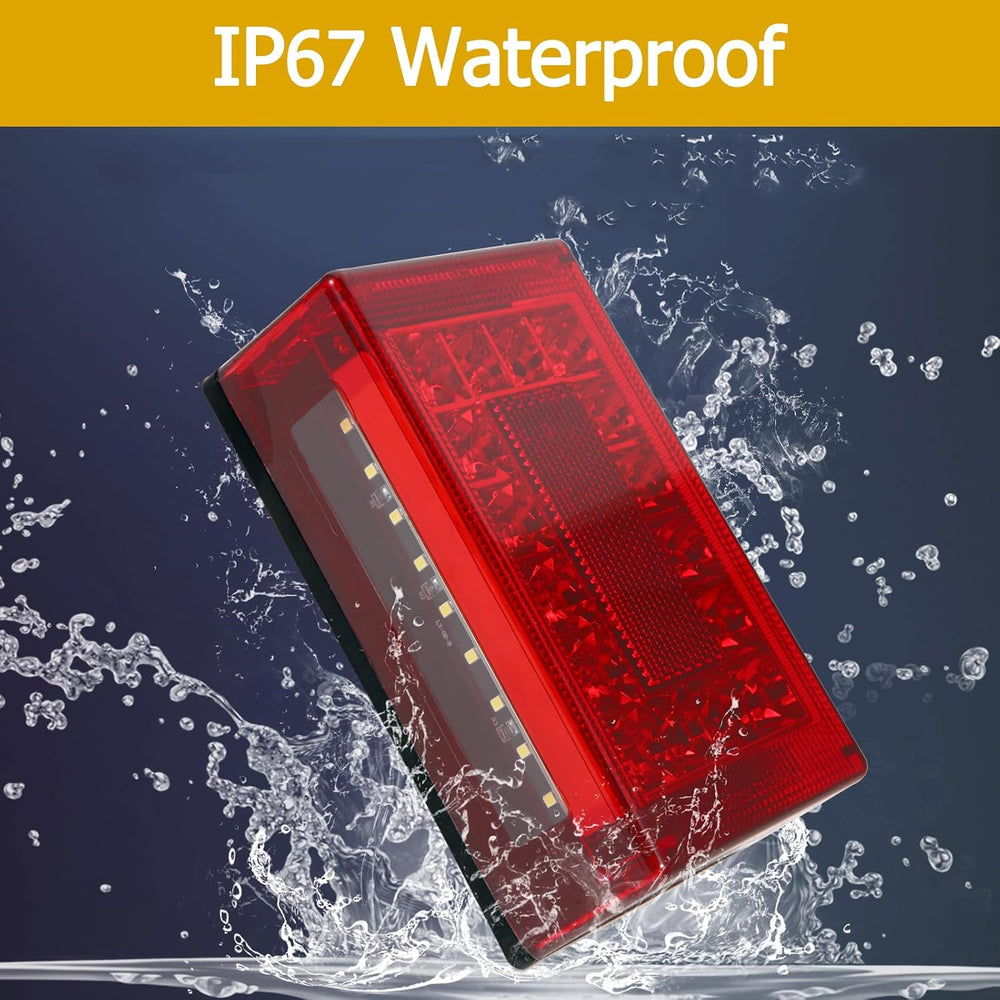

• Submersible Trailer Lights: Built with epoxy-encapsulated electronics and a sealed housing. Meets DOT FMVSS-108 taillight requirements. Suitable for submersible trailer light applications

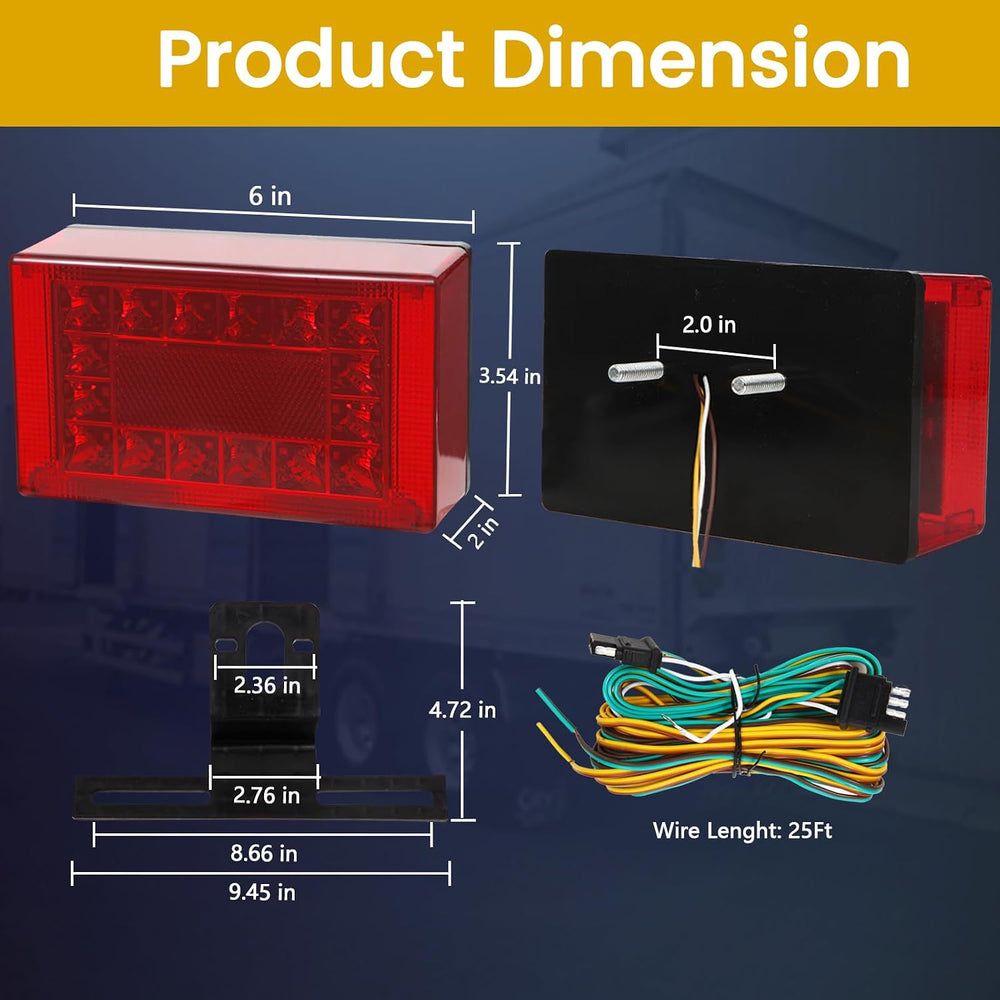

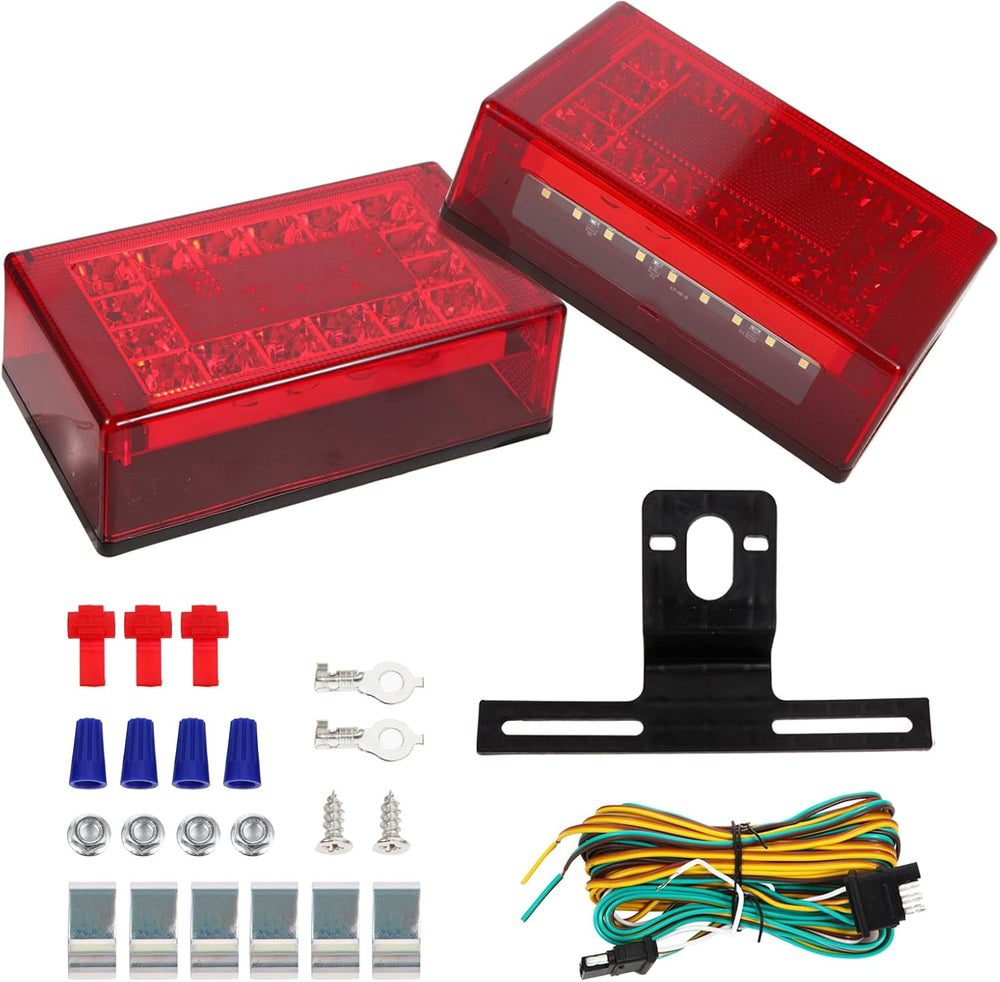

• 6" Boat Trailer Lights: Includes 2 combination run/stop/tail/turn rectangular trailer lights, measuring approximately 6"L × 3.54"W × 2"H, a 25 ft 4-pin trailer harness, a license plate bracket, and mounting hardware
• LED Trailer Lights Kit for Utility Trailer: Designed for 12V utility trailers up to 80 inches wide, as well as boat trailers, RVs, campers, tractors, canoes, trucks, buses, vans, and snowmobiles
