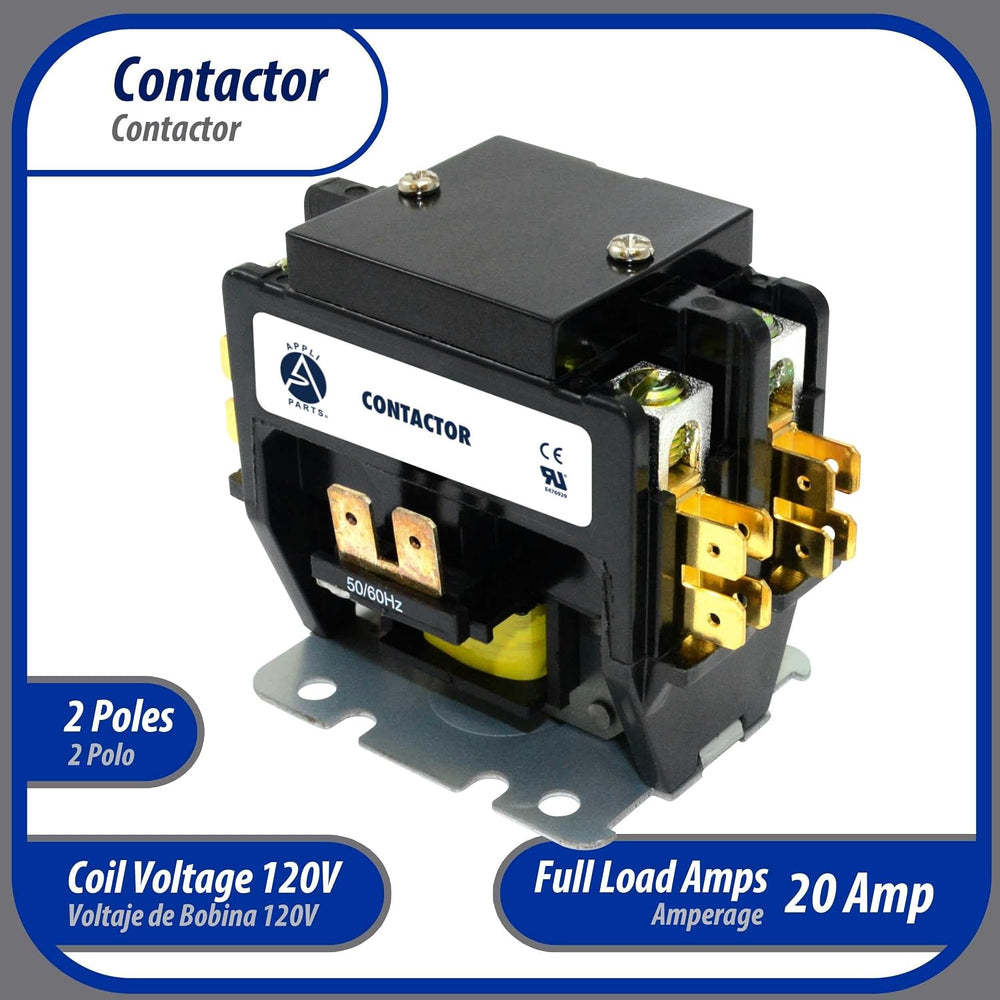

Appli Parts APAC-220120 Heavy Duty Contactor 2 Poles 20A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
US$52.36
Arrives as soon as ✓ Free shipping — over $200Description
Product Details Color: Black Material: Plastic Style: 2 Pole 120 Volts Size: 2 Pole / 20A / 120V Product Dimensions: 5 x 5 x 5 inches Item Weight: 6.1 ounces Voltage: 120 volts Item...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
Iterzen
Find Iterzen on ShopTap to open the Shop app
Follow us →
More options
Product Details
- Color: Black
- Material: Plastic
- Style: 2 Pole 120 Volts
- Size: 2 Pole / 20A / 120V

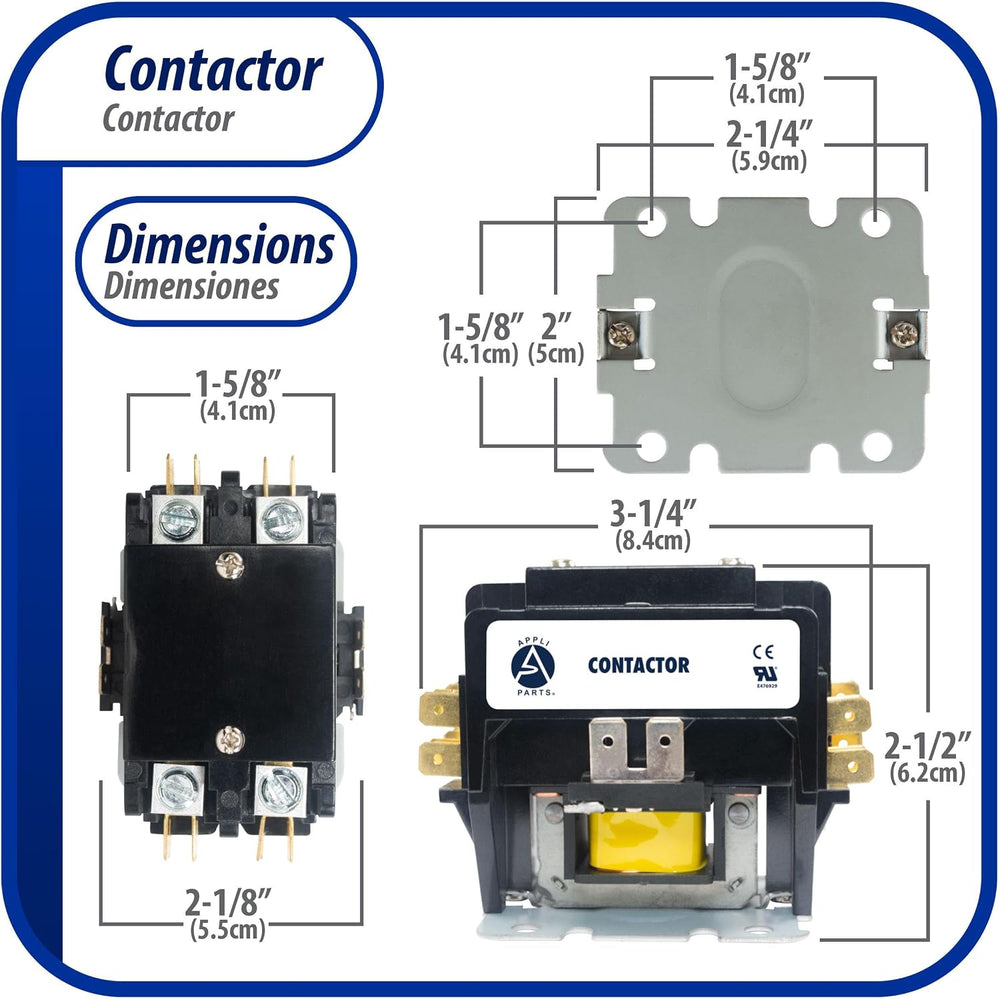

- Product Dimensions: 5 x 5 x 5 inches
- Item Weight: 6.1 ounces
- Voltage: 120 volts
- Item model number: ACK220120
- Part Number: APAC-220120
- Warranty Description: 1 Year Manufacturer
- Item Package Quantity: 1
- Number Of Pieces: 1
About this item
- Application: Heavy-duty 2 Poles 20A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.

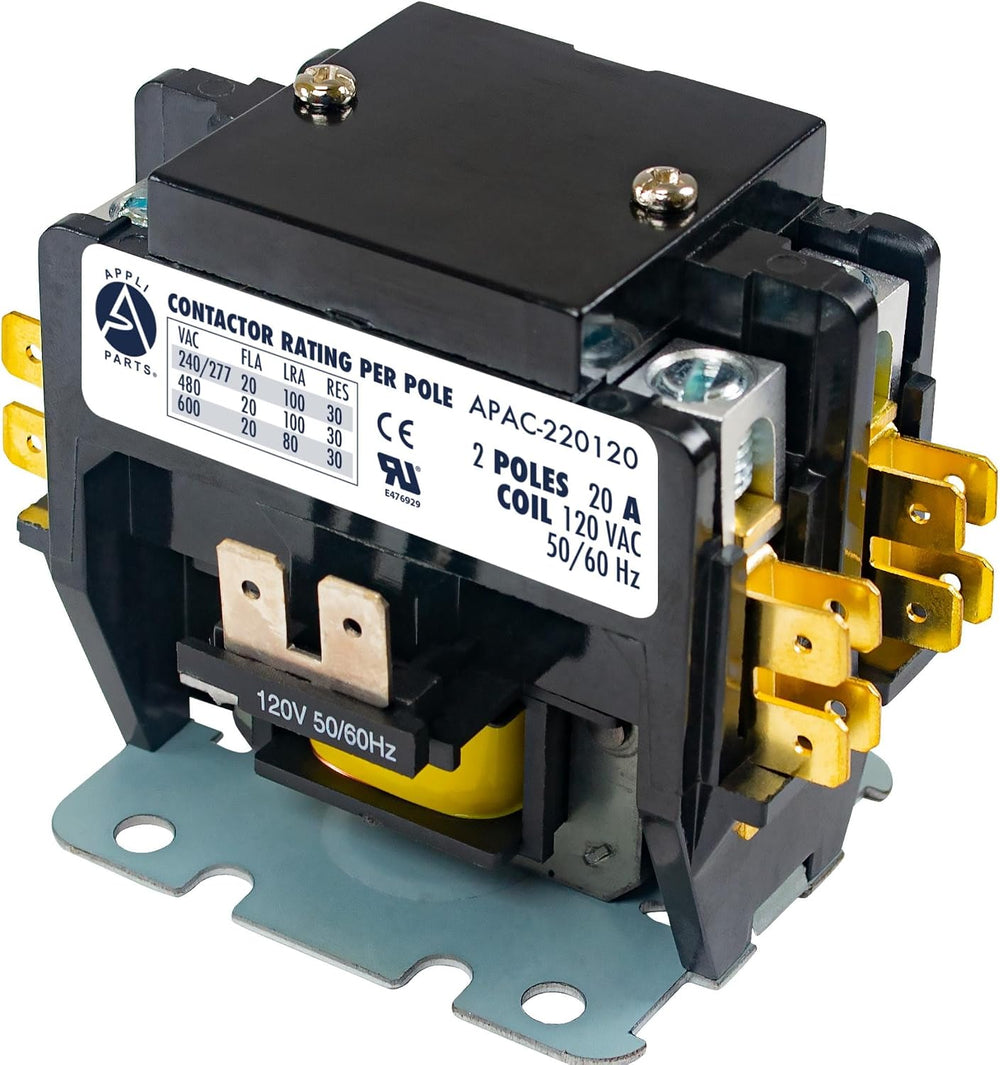

- Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
- Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C220B / 17122 / 17126 / 45CG20AF / C25BNB220A / HCCY2XT00AA303 / L41-431 Confirm cross-reference and specifications before replacement.
