Product Overview
The Auxbeam 8 Gang Switch Panel BB80 is a Multifunction product. It features offers a perfect solution to organize wiring harnesses and add.
Key Features

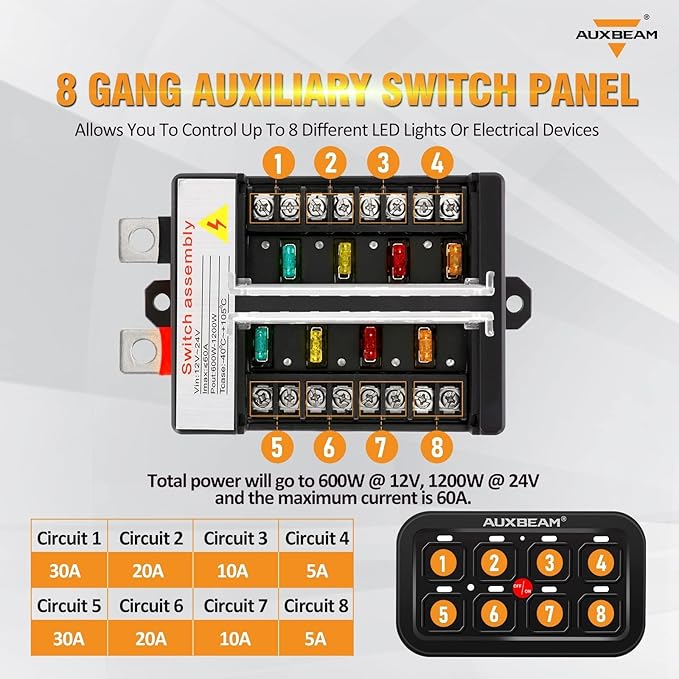

- Offers a perfect solution to organize wiring harnesses and add a single panel to control everything. This switch pod with 8 circuits can power all types of 12V/24V accessories, Max power rating: 1200W. Max current rating: 60A, Operating temperature: -40°F to 221°F

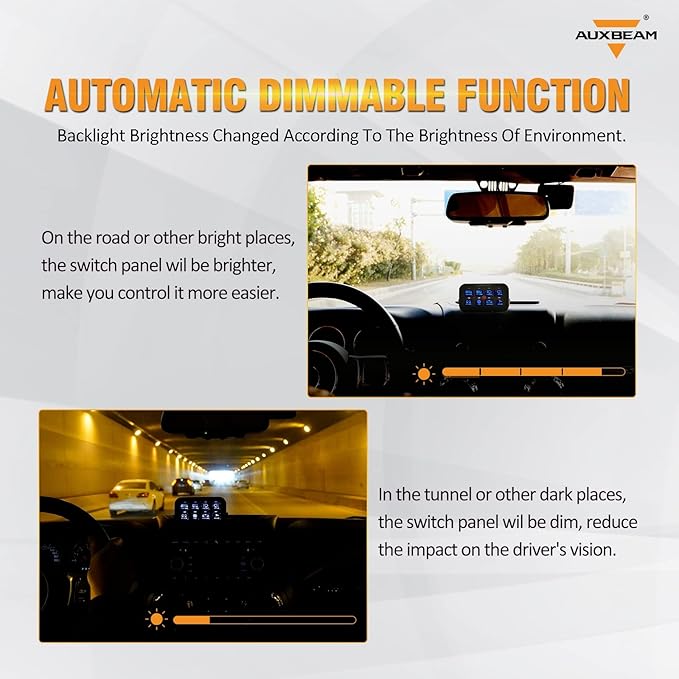

- Auxbeam switch panel BB80 includes an automatic dimming feature that adjusts brightness based on ambient light. It dims in dark environments to reduce glare and brightens in well-lit areas for better visibility, enhancing your off-road and night driving experience

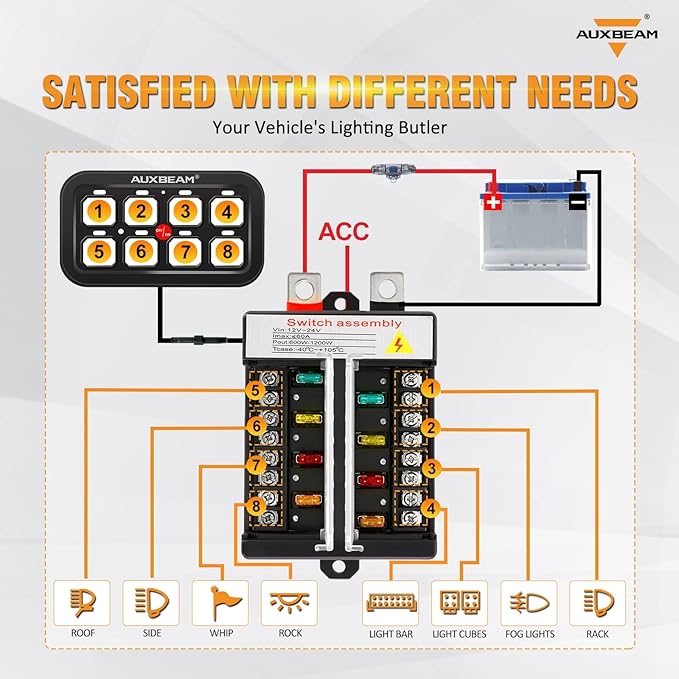

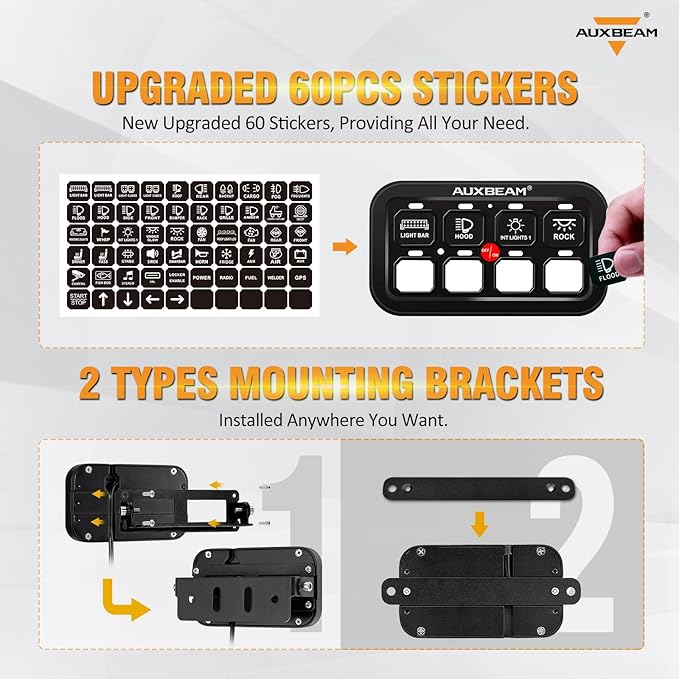

- This compact control box keeps wires organized and protected. It comes with a plug-and-play wiring harness, fuse, relay, and temperature protection switch. Choose between two mounting options: a bracket or double-sided tape, allowing for easy installation without cutting large holes
- Designed for any vehicle, this aux beam 8 gang switch panel provides professional control for electronic devices. It's suitable for trucks, pickups, UTVs, RVs, cars, and boats

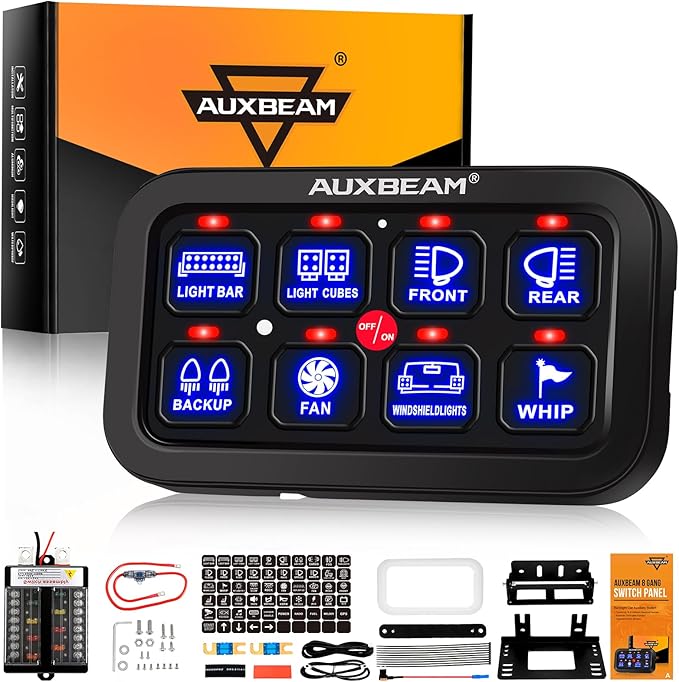

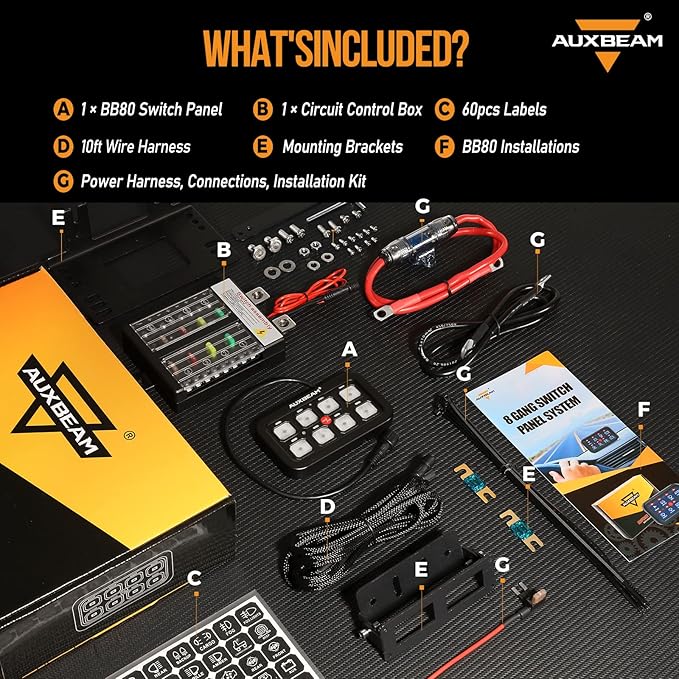

- The package includes 1 switch control box, 1 switch panel, 2 mounting brackets, 1 switch panel cover, 1 wiring harness, 60 DIY stickers, and an installation manual. For any issues, please contact us for excellent after-sales support. The product comes with a 2-year protection from AUXBEAM
Why Choose the Auxbeam 8 Gang Switch Panel BB80
The Auxbeam 8 Gang Switch Panel BB80 offers offers a perfect solution to organize wiring harnesses and auxbeam switch panel bb80 includes an automatic dimming. These features make the Auxbeam 8 Gang Switch Panel BB80 a strong option in the Multifunction category.
Best For
The Auxbeam 8 Gang Switch Panel BB80 is best suited for: any vehicle.
Quick Summary

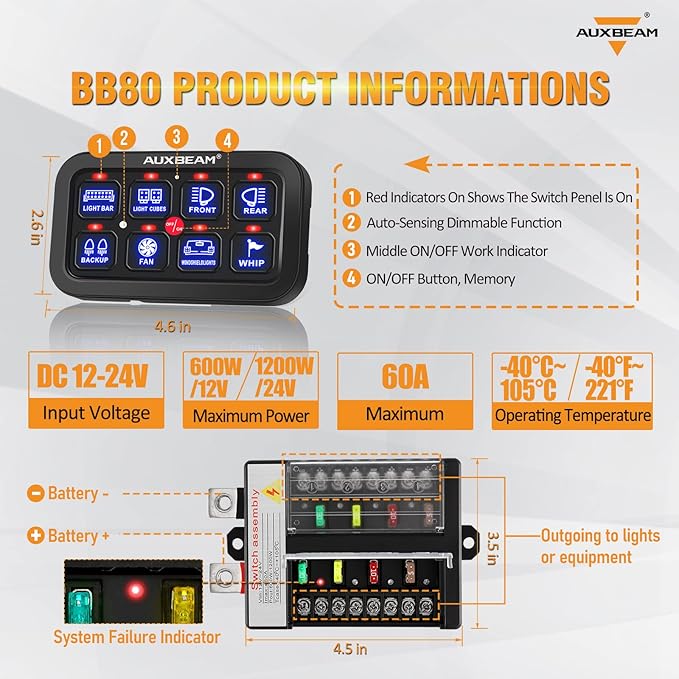

The Auxbeam 8 Gang Switch Panel BB80 is a Multifunction product by Auxbeam. Operation Mode: ON-OFF-ON. Current Rating: 60 Amps. Operating Voltage: 24 Volts (DC). Contact Type: Normally Closed. Connector Type: Plug In.

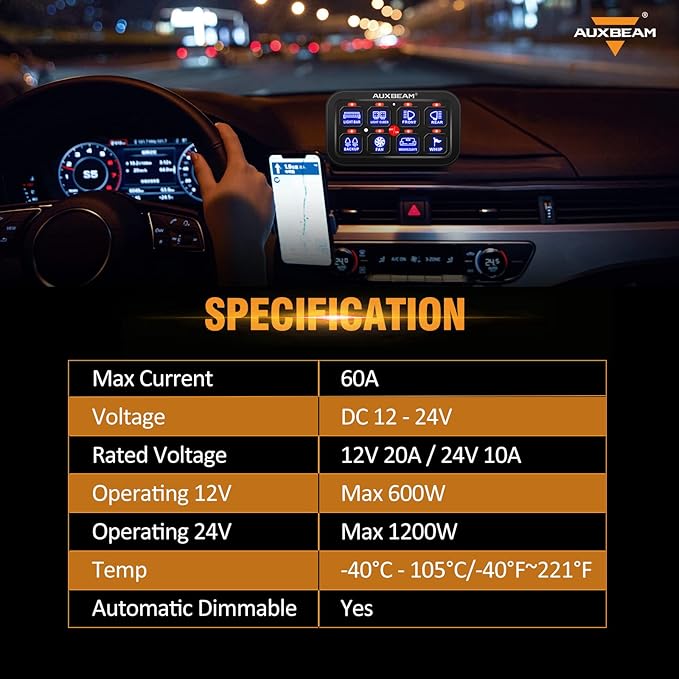

Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | ON-OFF-ON |
| Current Rating | 60 Amps |
| Operating Voltage | 24 Volts (DC) |
| Contact Type | Normally Closed |
| Connector Type | Plug In |
| Brand | Auxbeam |
| Terminal | Screw |
| Item dimensions L x W x H | 4.6 x 2.6 x 0.6 inches |
| Circuit Type | 8-way |
| Actuator Type | Push Button |
| Switch Type Push Button | Material Aluminum, Metal, Plastic |
| Mounting Type Panel Mount | Specification Met Ip65 |
