CLG HARDWARE Extra Heavy Duty Commercial Door Closer, Closing Delay Timer

Product Details

• Color: Dark Bronze
• Size: Extra Heavy Duty
• Item Weight: 10 pounds
• Included Components: Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations
• Number of Items: 1
• Unit Count: 1 Count
• Item Highlight: Contractors Choice, Speed & Force Adjustments, Automatic Door Closer, 3 Mounting Options, 3 Hour Fire Rated (DC9016 Bronze)
• Manufacturer Part Number: CLG-CLG9016-BC-DA-DURO
• Installation Type: Screw-In
• Recommended Uses For Product: High-traffic areas, heavy doors, commercial or public settings
• Specification Met: ANSI, UL
• Item Dimensions L x W x H: 12.25"L x 12.25"W x 3.5"H
• Material Type: Cast Iron
• Exterior Finish: Bronze

About this item

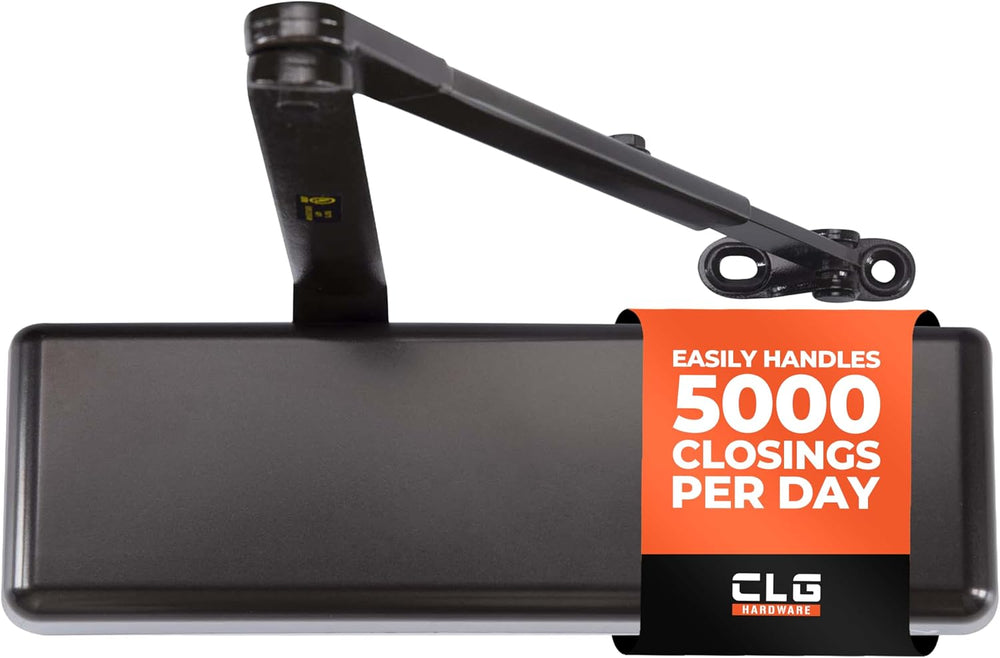

• EXTRA HEAVY DUTY COMMERCIAL GRADE: Made with a powder-coated cast iron body, wrought steel arm, and heat-treated piston, this commercial door closer ensures durability, reliability, and corrosion resistance for doors in extra high-traffic environments (up to 5,000 openings per day); suitable for department/mall/retail store entrances, office buildings, schools, and airport security doors

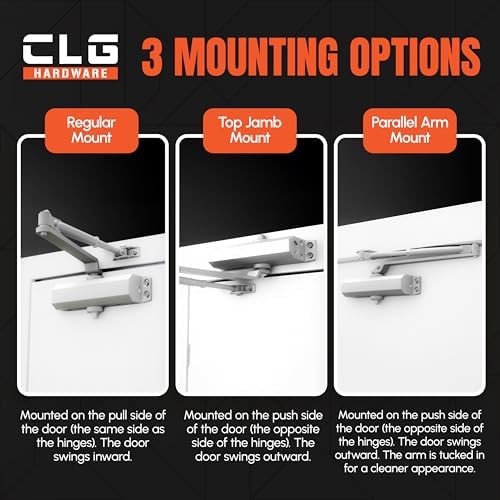

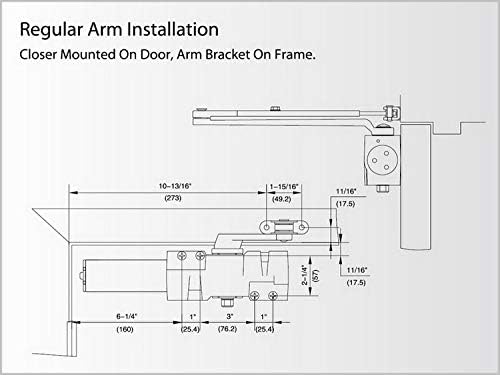

• THREE MOUNTING OPTIONS: This non-handed auto door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions are included for hassle-free installation

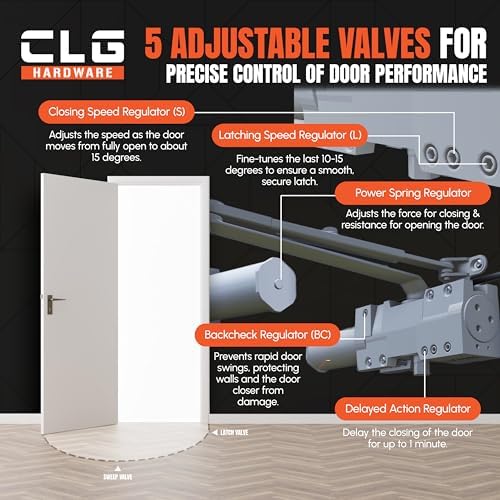

• 5 ADJUSTMENT VALVES FOR COMPLETE CONTROL: This hydraulic door closer features 5 adjustment valves to control the closing speed, latching speed, backcheck, spring force, and a delayed closing timer; fine-tune for smooth, quiet, and secure closing
• CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Certified (tested to exceed 2 million cycles), ensuring safety and reliability; the DC9016 door closer is trusted by contractors, property managers, and builders
• USA SUPPLIED & SUPPORTED: Our commercial door closers are supplied by a USA-based company, providing reliable year-round support
• SPECIFICATIONS: This door closer weighs 12.6 lbs (5.7 kg) and is for doors weighing up to 330 lbs (150 kg) and 60” (1500 mm) wide; it’s dimensions are 3 1/2" (89 mm) high, 12 1/4" (311 mm) wide and 2 1/4" (57 mm) deep; its screw/bolt pattern is 5" wide (center to center) and 2 1/4" high (center to center); the spring force is adjustable from Setting # 1 (2 pounds of closing force) through to Setting # 6 (14 pounds of closing force)
