CLG HARDWARE Medium Duty Automatic Door Closer - Durable Cast Aluminum

Product Details

• Color: Aluminum
• Size: Medium Duty
• Item Weight: 4 pounds
• Included Components: Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations
• Number of Items: 1
• Unit Count: 1 Count
• Model Number: CLG-CLG6003-BC-ALUM
• Number of Packs: 1
• Item Highlight: Commercial or Home Use, Adjustable Closing Speed Controls, 3 Mounting Options, 3 Hour Fire Rated (DC6003 Silver)
• Manufacturer Part Number: CLG-CLG6003-BC-ALUM
• Installation Type: Screw-In
• Recommended Uses For Product: Residential and light commercial areas, medium- to high-traffic entrances, homes, condominium units, offices, and restaurants
• Specification Met: ADA, ANSI, UL
• Material Type: Aluminum
• Exterior Finish: Aluminum

About this item

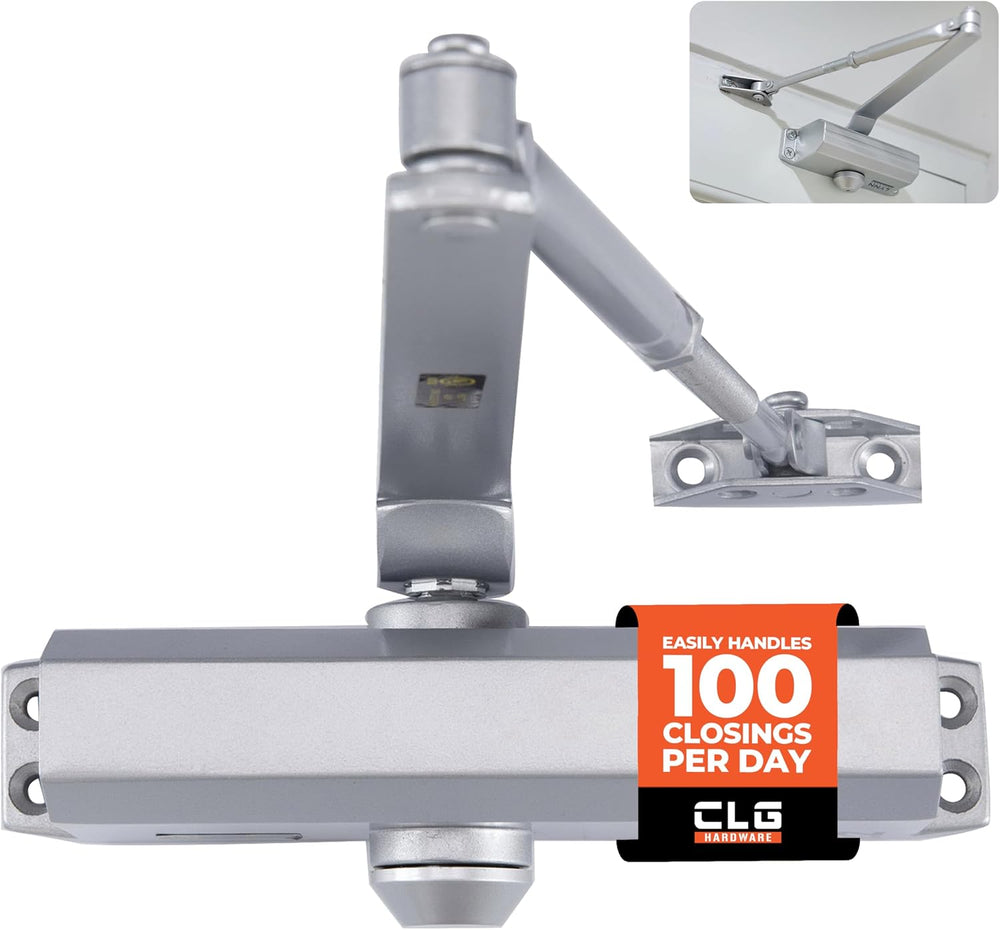

• PREMIUM COMMERCIAL-GRADE PERFORMANCE: Built with a powder-coated cast aluminum body, wrought steel arm, and heat-treated piston, this residential and commercial door closer ensures durability, reliability, and corrosion resistance for doors in medium-traffic areas (up to 100 closings per day); suitable for offices, homes, storefronts, restaurants, and restrooms with frequent door usage

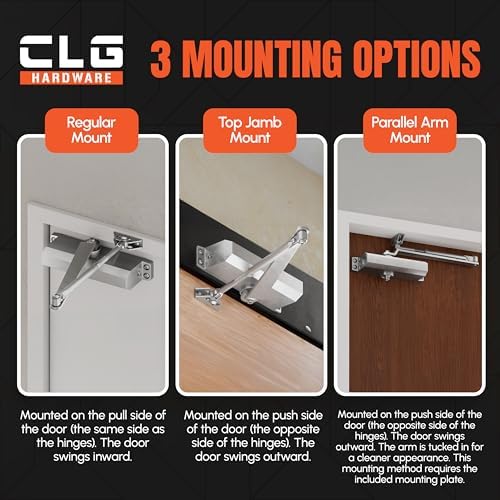

• THREE MOUNTING OPTIONS: This non-handed automatic door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions (including an online video) are included for a hassle-free installation

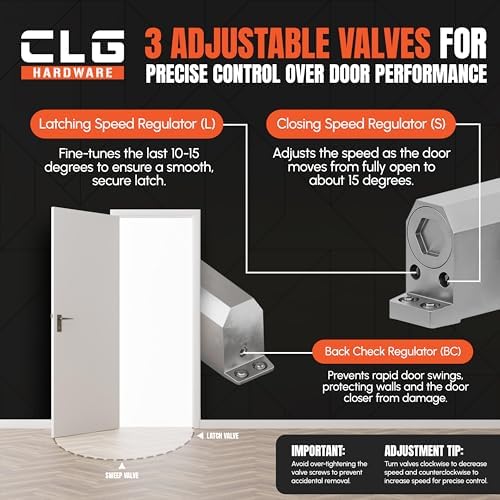

• ADJUSTABLE FOR SPEED CONTROL: This hydraulic door closer features three adjustment valves to control the closing speed, the latching speed, and the backcheck (maximum opening angle); it ensures a smooth, quiet, and secure latching every time

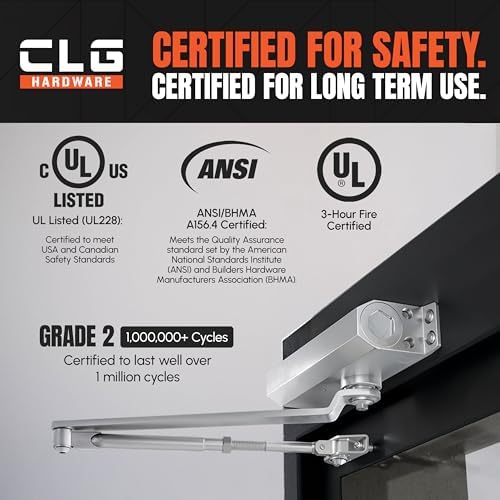

• CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Certified (tested to exceed 1 million cycles), ensuring safety and reliability; the DC6003 door closer is trusted by architects, interior designers, property managers, contractors, and builders
• USA SUPPLIED & SUPPORTED WITH A 5-YEAR WARRANTY: Our door closers commercial and residential use are supplied and supported by a USA-based company, offering year-round support and a 5-year replacement warranty for added peace of mind

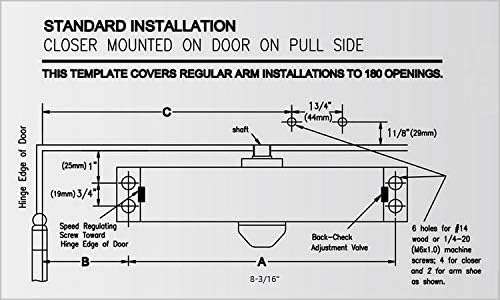

• SPECIFICATIONS: This door closer weighs 5 lbs (2.27 kg) and is for doors weighing up to 150 lbs (65 kg) and 36” (950 mm) wide; it’s dimensions are 1 5/8" (41 mm) high, 8 7/8" (225 mm) wide and 2 7/8" (73 mm) deep; its screw/bolt pattern is 8 3/16" wide (center to center) and 3/4" high (center to center); the spring force is fixed at a medium setting (also known as setting #3) which is approx 5 pounds of force
