Onemake Undermount Soft Close Drawer Slides with Rear Mount Brackets, 3D Locking Device with Metal Base, 100 Lbs Full Extension, Concealed Bottom Mount Rails Runners for Face Frame (18 Inch, 5 Pair)
US$215.98
Arrives as soon as ✓ Free shipping — over $200Description
Product Details Color: Satin Nickel Mounting Type: Under Mount Included Components: 3D Rear Mount Bracket × 5 Pairs, Drawer Slide × 5 Pairs, Instruction Manual × 5, Level × 5, rear hook with pr...
Delivery & Returns
Ships to the United States
Free shipping on orders over $200 · $6.90 below that
30-day returns — label emailed, fees may apply
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
You might also like
SORQINOTER
3 Pack Heavy-Duty Shipping Container Shelves with 57"(H) X 18"(W)
US$233.98
Xnvua
48 Volt 18 AMP Golf Cart Battery Charger for Club Car 3-Pin Round Plug for 48V Lead Acid Battery
US$170.98
GIMFOOM
Car Jump Starter, 3000A Jump Starter Battery Pack for Up to 9.0L Gas or 7.5L Diesel Engine, 12V Car Battery Jump Starter, Jump Box with LED Light, Storage Case, and Dual USB Output.
US$107.98
MHMYDZ
20 Pack L5 x H 3" Black Heavy Duty Shelf Brackets with Screws Metal Shelf Brackets Shelf Support Angle Brackets for Shelves L Brackets Heavy Duty Floating Shelf
US$61.11
MHMYDZ
24 Pack L5 x H 3" Black Heavy Duty Shelf Brackets with Screws Metal Shelf Brackets Shelf Support Angle Brackets for Shelves L Brackets Heavy Duty Floating Shelf
US$66.51
Zyklonix
Sausage Caulk Gun,20 oz Sausage Foil Pack/10 oz Cartridge Adhesive Dual-Purpose,18:1 Thrust,15” Sealant Manual Caulking Gun Kit With Cone Nozzles and Bent Tip (Sliver-2 Pack)
US$88.18
JDK Diamond Tools
JDK 4 Inch Diamond Resin Filled Cup Wheel Grinding Wheel with Thread 5/8“-11 for Granite Stone and Tiles (Coarse)
US$91.78
Tsmhisd
Shoulder Eye Bolts M10 Heavy Duty Shoulder Lag Eyebolts, Stainless Steel Expansion Screws Wall Concrete Anchors Fastener with Nut for Wall Ceiling Concrete Masonry, 10PCS
US$66.40
KaiMinDogzGarageDoo...
Pair of 1.75" Garage Door Torsion Springs Set
US$242.78
LIFMOCERHOME
GS300 Jump Starter
US$107.96
SupConn
2-3/8"Steel to Wood Fence Brackets,24Pcs Metal Fence Post Brackets
US$142.18
SURGE BUILDING PROD...
1/4" x 2" Hammer Drive Nail in Concrete Anchor (Box of 100)
US$67.50
US$215.98Free shipping
More options
Link copied
Product Details
- Color: Satin Nickel
- Mounting Type: Under Mount

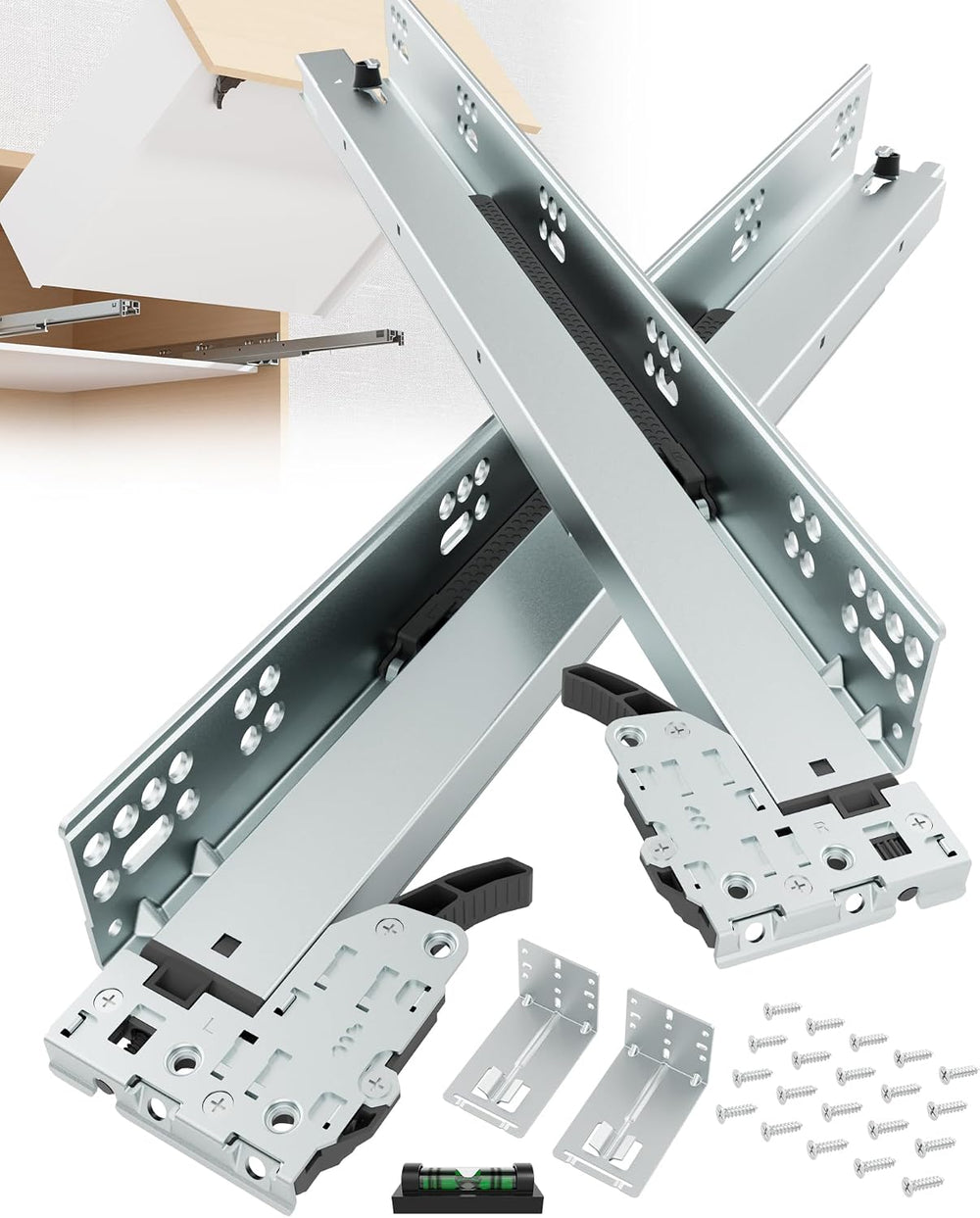

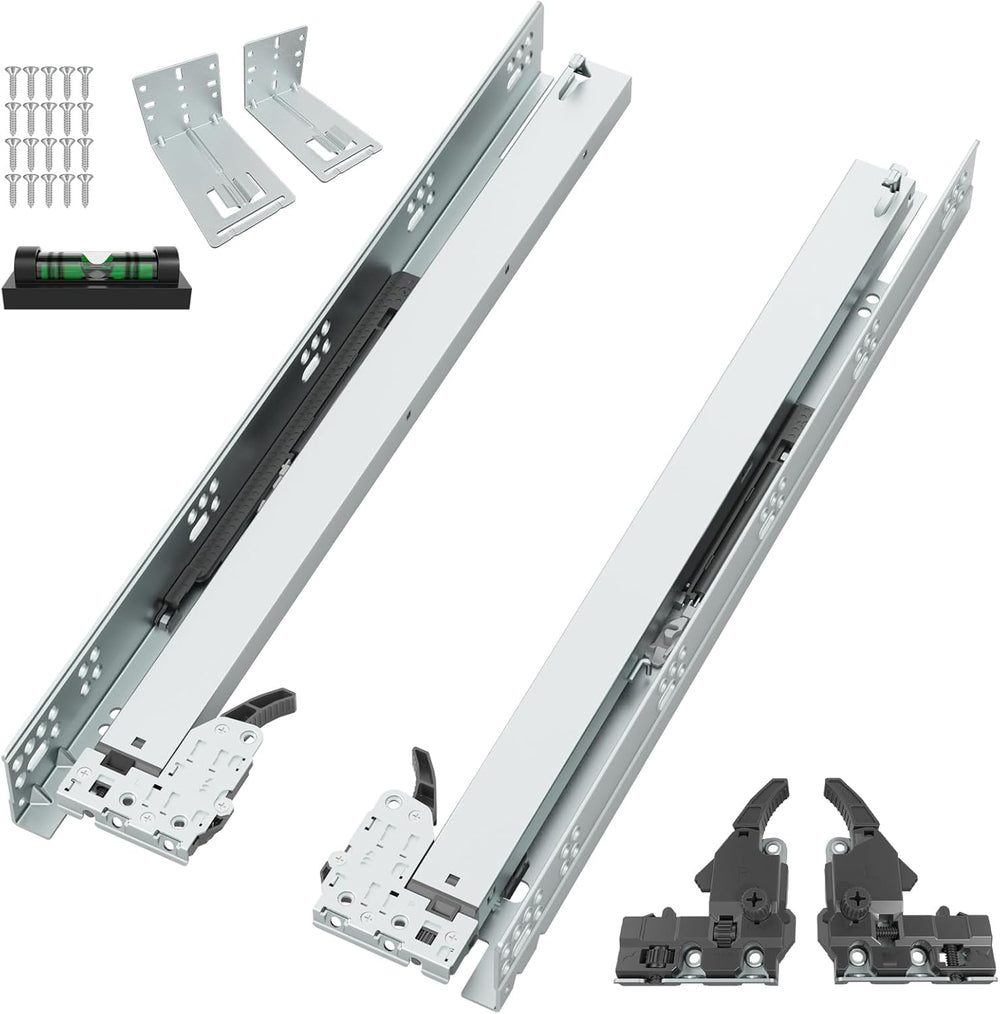

- Included Components: 3D Rear Mount Bracket × 5 Pairs, Drawer Slide × 5 Pairs, Instruction Manual × 5, Level × 5, rear hook with protective gasket × 10, mounting screws × 100, Locking Device with Metal Base × 5 Pairs
- Number of Items: 5
- Unit Count: 5 Count
- Model Number: B2603
- Material Type: Zinc
- Item Dimensions L x W x Thickness: 18"L x 1.15"W x 0.07"Th
- Finish Types: Steel
- Maximum Weight Capacity: 100 pounds
- Drawer Type: Under Mounted Slide
About this item
- Soft Close Mechanism: This undermount slide features a hydraulic soft-close system that gently pulls your drawer shut within the last few inches. No more loud bangs or finger pinching. It creates a quiet, controlled closing action every time, adding a premium feel to your your face frame cabinet
- Full Extension & 100 LB Load Capacity: The concealed rails extend fully to let you access every corner of the drawer, while supporting up to 100 lbs. Sturdy construction distributes weight evenly, keeping drawers stable even when loaded with heavy kitchenware or office supplies

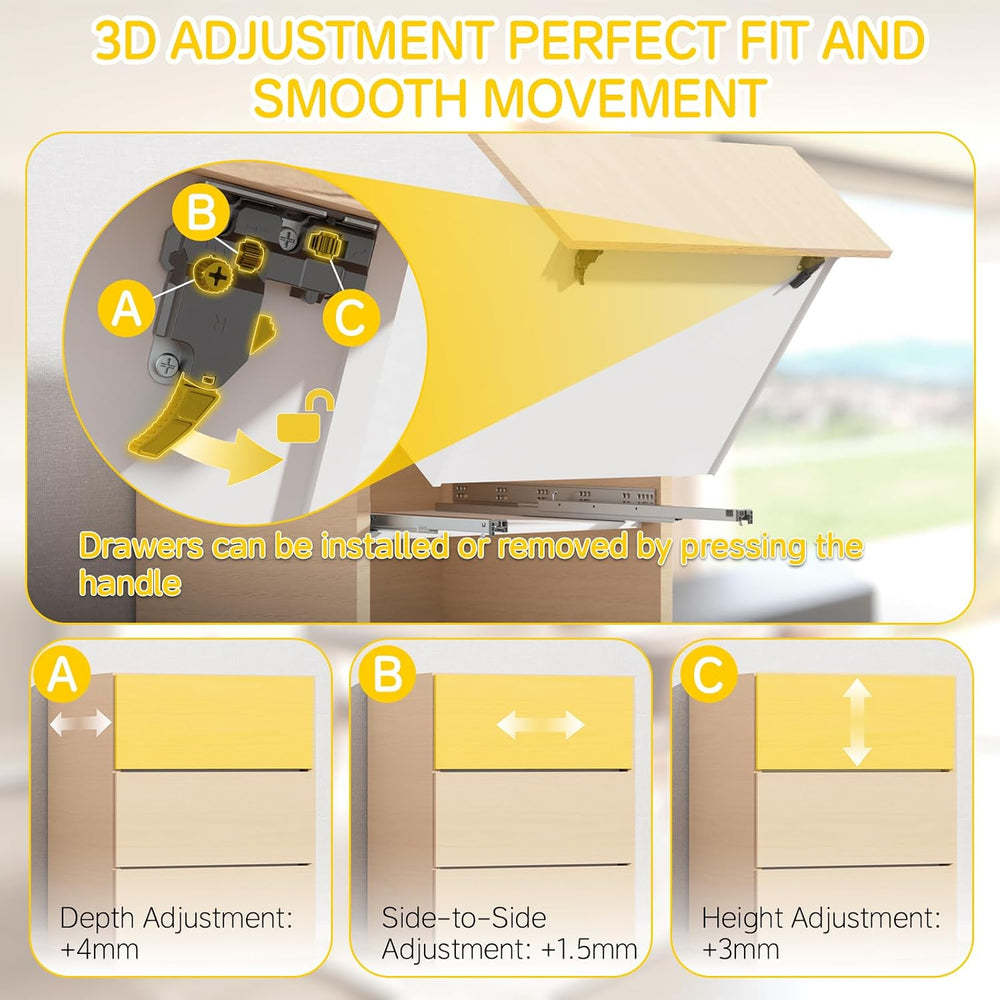

- 3D Adjustable Design: The 3D adjustable design lets you fine-tune the slide position vertically, horizontally, and depth-wise. This flexibility compensates for imperfect cabinet construction, ensuring a aligned drawer front even on face frame cabinets without frustration
- Easy Installation: This lock device features a premium metal base that resists damage and ensures long-term stable operation. It creates a connection between the slide rail and the cabinet, It connects the slide rail to the cabinet, allowing for easy drawer removal and installation. The included level helps achieve precise horizontal placement, reducing drawer jamming and poor sliding while lowering installation difficulty
- Package Includes: The packaging includes five sets of slides. Each set includes 1 pairs of slides (includes one left and one right slide), rear metal mounting brackets, 3D adjustable locking devices with metal base, rear hook with protective gasket, level, Instruction manual and 20 mounting screws
